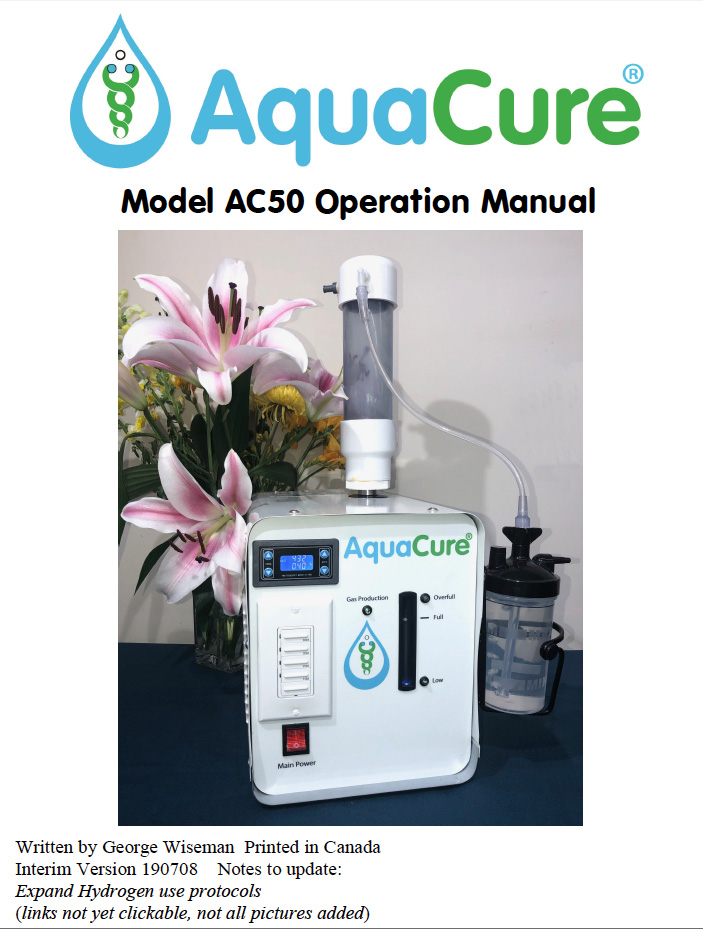

AquaCure model AC50 Operation Manual

USD $35.00

We intend for people to print out their own from the downloads below, but if you wish,  You can purchase a physical copy here.
If you purchase a physical copy it is SHIPPED SEPARATELY from your AquaCure Kit.

You can download the most recent eCopy and it’s UPDATE here:
AquaCure Operation Manual

AquaCure Operation Manual UPDATE
Information in the UPDATE supersedes the Manual, si BE SURE to read it.

Impromptu AquaCure AC50 Setup and Operation Video (be sure to read it’s text)

Category: Tag:


More helpful links:

See Brown’s Gas testimonials / studies / etc. here:

AquaCure Brochure

Brown’s Gas for Health (legacy page)

What is Brown’s Gas?

How I use Brown’s Gas for Health

Plants Don’t Lie

Purchase your AquaCure model AC50 here:

AquaCure New Timer Switch

Properly Install the Tower Cap

Make sure your Tower Cap base Union is sealed properly and that you remove the Tower Cap using the Union ring, so you do not need to keep re-applying the Teflon Tape.
DO NOT ’torque’ on the Tower Cap (turn the Tower Cap itself) to seal the base fitting; doing so will ‘lock up’ the Union, requiring wrenches to loosen it.

AquaCure Rinsing Technique

When Rinsing:
To dissolve soap formations you need water in the 120° F to 140°F range.  The water must be hot; warm water does little.  Remember to trade out the hot water within a minute or so (at first) because it will cool quickly as it heats up the components.
You Fill the AquaCure to FULL with HOT water (6 to 7 cups).  Then alternately and SLOWLY lift the front and back of the machine up to 60 degrees to ‘wash’ the HOT water up and down in the Sight Tube.
You need to change out the HOT water frequently because it cools off quickly and warm water does little to dissolve soap.
NOTE: If the HOT water doesn’t ‘’reach’ the tight tube, doesn’t wash’ up and down in the sight tube, it CANNOT clean the sight tube; if you are not getting the water washing up and down in the sight tube, it’s likely due to a plug or restriction and that needs to be fixed ‘manually’; ask for instructions.

Note: I occasionally get an ‘air bubble’ in the tube (so it will seem that the sight tube and/or ball is not ‘registering’ the actual fluid level correctly).
Generally air bubbles will eventually clear on their own, but you can ‘hurry’ the process by filling the AquaCure with solution.  Then alternately and VERY SLOWLY lift the front and back of the machine up to 60 degrees to ‘wash’ the solution up and down in the Sight Tube, washing out the air bubble(s) and the ball should float properly.

Setup your AquaCureAC50 torch attachment:

H2 Hubb AquaCure AC50,  Unboxing, Setup and Test videos:
Test gas production

Additional information

Weight 3.8 oz
Dimensions 11 × 8.5 × 0.375 in
